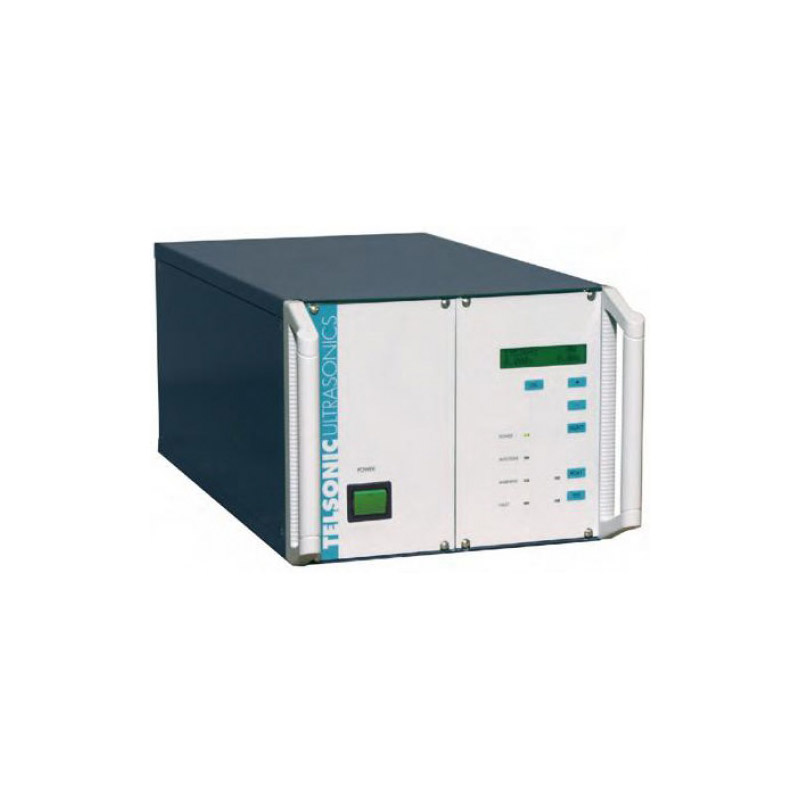

- Swiss DHG digital ultrasonic generator
- 7 inch colorful touch screen Chinese / English operation surface
- Automatically search ultrasonic frequency and 50%~100% amplitude adjustment
- Time welding mode
- Constant (Relative and Absolute position) welding mode
- Constant energy welding mode
- Constant power welding mode
- Welding quality control
- Ultrasonic parameter data management,each data can be saved with USB flash drive
- Nodal support booster made of hard Ti-Aluminum alloy
- Constant energy welding mode
- Postpone start option
- Shake function
- Rectangular machinery pillar, strong precise
- Periodic amplitude control and periodic welding pressure (option)

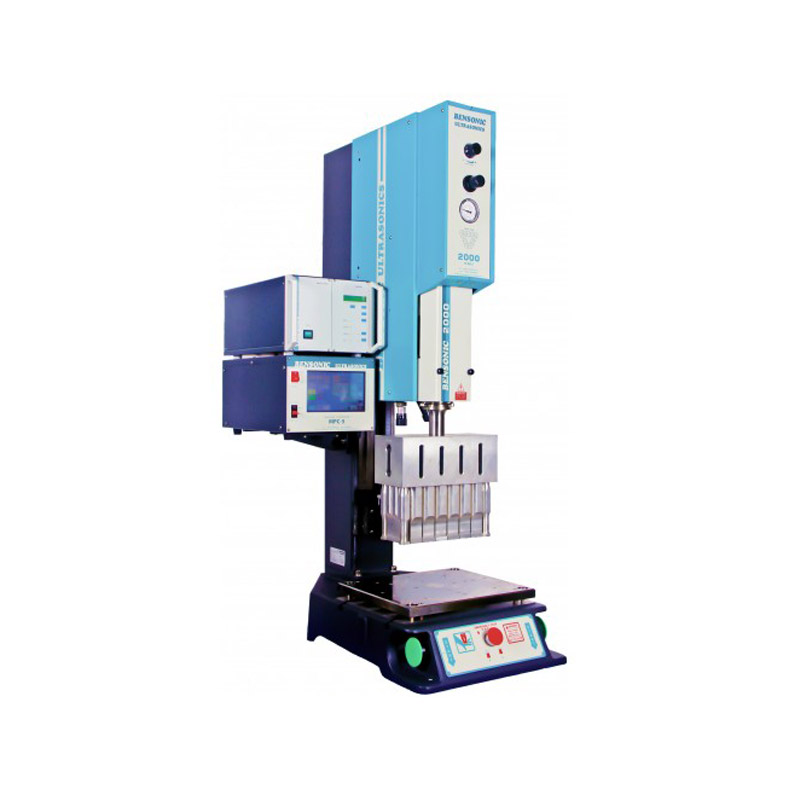

Digital Advance Ultrasonic Plastic Welding Machine
*Swiss DHG digital ultrasonic generator *7 inch colorful touch screen Chinese / English operation..
Block "product-contact" not found
Feature
1.Direct Parameters Input user friendly
Convenience Chinese / English HMI, easily to input multiple welding modes. Like welding timeabsolute distance, relative distance, energy control, power control, constant time ,touch trigger。
Could save 50 sets of welding program, also could choose and add many function ,because the function is strong, use easily, extend without limited, so won the best design award in 2007.
2.Ultrasonic Amplitude Adjustment
Amplitude able to be set 50%~100% output according to the welding request. Automatic search for ultrasonic frequency
3.Linear Encoder Measurement
Adopt precise linear encoder (precision 0.0050mm) to make welding depth control, inorder to reach precision ±0.01mm on finished product.
4.Electronic Force Trigger
Make ultrasonic oscillation of each time on the same trigger pressure, to ensure every oscillation, appear the accurate welding state, reach to the best quality.
5.Shake Function
Especially equipped with (SHAKE) function, to prevent working piece stick to the horn even after welding.This function could be designed turn on or turn off on client’s demand.
6.High Efficiency Converter and hard Booster
High efficiency converter and exclusive Titanium booster, with the best resonance system and over 95% transform for mechanical and electrical of the converter and titanium booster, which will offer the most stabilization and high precision, the best support method.
7.Machine Construction
Strengthened rectangular pillar, base plate and the up and down base, could make full load pressure situation fix the horn and avoid it move, make the most accurate stable welding quality.
8.Highly Precise Linear Slide
Precise slide with double slide piece reaches accurate linear motion to guarantee precision of plastic welding.
9.Machine Modulize
Machine body, ultrasonic generator, and ultrasonic controller are all modulized to ensure high quality and application of mahchine.The converter and the fixture are high precision fast changeable mold design, especially suitable for carving, adjustable and changeable tooling.
10.Step Amplitude Control
Able to set fore steps of different output during each welding, for some special material or special precise welding application to reach more precise welding reasult.
11.Step Welding Pressure (option)
Use German Bosch and cylinder, could choose proportional valve for step welding pressure, to weld challenging product.
12.Welding Data Management / Storage (option)
Able to connect with computer for storage, management and print out of each information.
13.Welding quality control reveal
There is out of time welding safety reveal and every real out put data reveal after welding.In order to protect the damage cause of the wrong operate or process product bad.
Technical Information
Technical data | ||||
Model | BA-2030DHG | BA-2040DHG | BA-2045DHG | BA-3020DHG |
Ultrasonic freguency | 20KHz | 20KHz | 20KHz | 30KHz |
Ultrasonic power | 3000W | 4000W | 4500W | 2000W |
Supply voltage 50/60Hz | 220V/1P | 380V/3P | 380V/3P | 220V/1P |
Control votage | 24V | 24V | 24V | 24V |
Welding pressure | 80N-2500N | 80N-2500N | 80N-2500N | 80N-1500N |
Weight | 100KG | 100KG | 100KG | 100KG |
Dimension | 410mm X 700mm X 1100mm |
