- 3T control (delay time, welding time, holding time)
- New digital anti-interference time control circuit
- The newest ON BOARD modulize avoid interference ultrasonic generator
- The economic and the best function ECO series

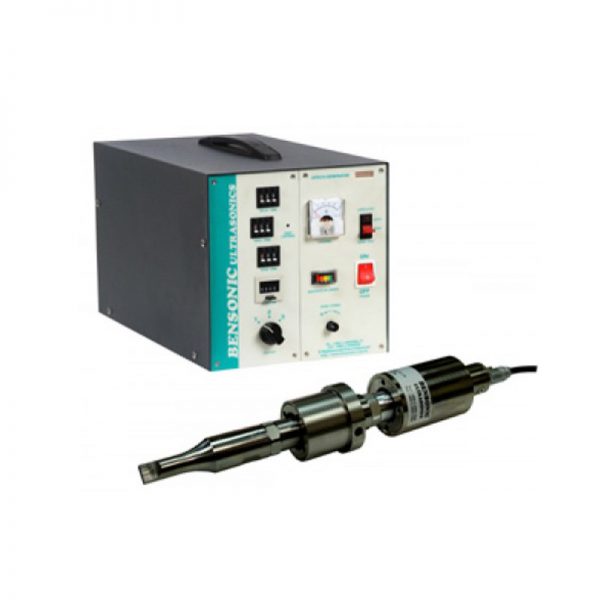

ECO Plastic Welding Machine
*3T control (delay time, welding time, holding time) *New digital anti-interference time control ..
Block "product-contact" not found
Feature
1.Technology application have the newest anti-interference,
Circuit board loop (ON BOARD) not only promote the function, also decrease the cost, provide some feedback to customers and the upgrade HITEK generator combine with LED Frequency Display and LED Overload Display.
2.Best Welded Product with Welding Depth Control
Mechanical and electric position off in the same time, Whole series equipped with “Position Off and Stopper Device”(Patent No. : PAT 66995) collocate precise scale button enables the depth precision of welded product each time within ±0.01mm.
3.Digital Time Control Circuit
New developed digital anti-interfere time control circuit solves the problem for being interfered by electric field. magnetic field and other electronic reasons and reaches better time control and the most safety performance.
4.Optimized Air Pressure Actuator System
High speed electromagnetic valve cooperated with specially make cylinder and scale speed control valve, able to perfectly transmit the power in the working pressure range 0~6kg / cm2.
Technical Information
Technical data | |||
Model | ECO-2015P | ECO-3005P | ECO3510P |
Ultrasonic freguency | 20KHz | 30KHz | 35KHz |
Ultrasonic power | 1500W | 500W | 1000W |
Supply voltage 50/60Hz | 220V/1P | 220V/1P | 220V/1P |
Control votage | 24V | 24V | 24V |
Weight | 50KG | 50KG | 50KG |
Dimension | 550mm X 350mm X 950mm |
